Savant® 16 Channel Audio Amplifier

At a Glance

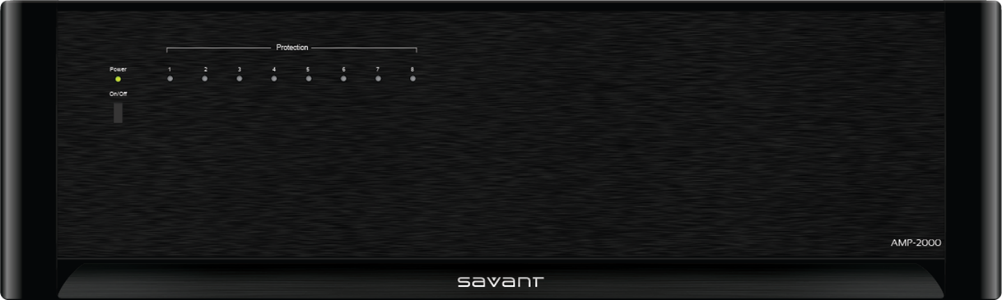

Savant® 16 Channel Audio Amplifier with front panel LEDs indicate fault status and optional rack ears

Proposition 65 Warning for California Residents

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

This product is the international version of the AMP-2000-00. An ultra-efficient Class D amplifier. It delivers 16 channels of reliable, affordable and feature-rich amplification rated at 40 watts per channel at 8 ohms in a three rack-space metal enclosure.

Optional rack ears included

4-ohm stable

Front panel LEDs indicate fault status

Supports Audio Sense, Voltage Trigger, and Manual modes

Environmental

Temperature: 32° to 104° F (0° to 40° C)

Humidity: 10% to 80% Relative Humidity (non-condensing)

Cooling: 202 cubic feet per minute (CFM) recommended

BTU: 3925 BTU/hr

Power

Input Power: 230V AC 5A 50

Fuse Rating: T8AL/250V (230V) (International)

Maximum Power: 1150 watts

Operating Parameters

Rated Power: 40 WPC at 8 ohms, 50 WPC at 4 ohms; (0.1% THD+N, 1kHz)

Input Impedance: 33k ohms

Input Sensitivity: 750mV for 40W at 8 ohms

Overall Voltage Gain: 27.5dB

Frequency Response: Bandwidth limited from 20Hz to 20kHz +0.8dB

Distortion, THD+N:  < 0.07% THD+N from 20Hz to 20kHz, All channels driven at 8 ohms (1 Watt)

Signal-to-Noise Ratio:  >90dB

Input Triggers: 3 – 24V AC/DC 5mA

Output Triggers: 12V DC 100mA

Regulatory

Safety and Emissions: FCC Part 15 | UL-60065

RoHS Compliant

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
