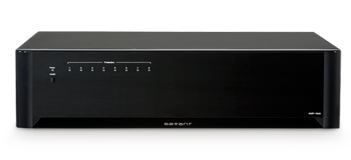

Savant® 16 Channel Digital Audio Power Amplifier
At a Glance
Product Dimensions 5.21"h x 17.30"w x 15.00"d
Savant® 16 Channel Digital Audio Power Amplifier with three turn on modes and front panel status indicatorsRead More
Get to know this product.
Product Overview
AMP-2000 is an ultra-efficient Class D amplifier delivering 16 channels of reliable, affordable, feature-rich amplification rated at 40 watts per channels at 8 Ohms in a 3 rack-space metal enclosure. The extraordinary power supply design provides the energy necessary to deliver solid, deep, controlled bass to a house full of speakers. More sound with less power.
Additional Features:
-
Three Turn-On Modes provide the amplifier flexibility to power on and off:
-
Audio Sense
-
Voltage Trigger
-
Manual Mode
-
0.1% THD+N, kHz
-
Distortion < 0.07% THD+N from 20Hz to 20 kHz
-
Frequency Response: 20 Hz to 20 kHz
-
Signal-to-Noise Ratio > 90dB
-
40WPC @ 8 Ohms, 50WPC @ 4 Ohms
-
Independent level controls
-
Input Trigger: 5 -24 V AC/DC; Output Trigger: 12mV
-
Fanless design with overload protection front panel status indicators
-
Savant Industrial Design Signature
-
International Version Available (AMP-2000I)
Useful Documents
Specifications
General Specs |
| Depth (in.) | 15.00 |
| Height (in.) | 5.21 |
| Impedance | 33 ohms |
| Width (in.) | 17.30 |
| Product Weight (lbs.) | 43.0000 |
Specifications |
| Power On Consumption (watts): | 1150 |
| Signal to Noise Ratio: | 90dB |
