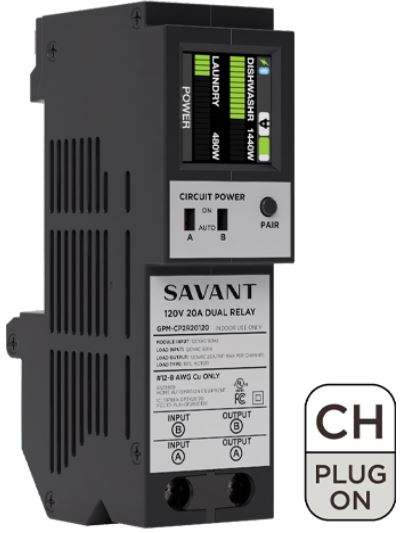

Savant Dual 20A Power Module

Model #: GPM-CP2R20120-21

At a Glance

Savant's Dual 20A Power Module (120V AC with Current Transformer - CH™ compatible with plug-on neutral) controls and monitors up to two 20 amp circuits; ideal for outlets, kitchen appliances, lighting, and more.

WarningProposition 65 Warning for California Residents
Savant Dual 20A Power Module

General Specs

Product Weight (lbs.).5
Width (in.)1.45
Height (in.)2.6
Length (in.)4.97
Outdoor ApprovedNo
Manufacturer Warranty5 Year
Color Finish NameBlack
Ul Cul ListedNo
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
App CapableNo

Savant Dual 20A Power Module

Model #: GPM-CP2R20120-21
1197767
Model #: GPM-CP2R20120-21
Savant
$99,999.00

Call for Best Price

At a Glance

Savant's Dual 20A Power Module (120V AC with Current Transformer - CH™ compatible with plug-on neutral) controls and monitors up to two 20 amp circuits; ideal for outlets, kitchen appliances, lighting, and more.

Get to know this product.

Works with 3/4 inch Eaton CH™ plug-on neutral load centers.

Supported for use with Savant Power Systems or as part of a larger Savant Pro system.

Compatible with Savant Power Director and/or Savant Panel Bridge Controller (PBC-1000), Savant Energy Monitor (SEM)

Deployment and configuration via Savant Power and Light 2.0 App or through RacePoint Blueprint

Control Capability for loads up to 2400 VA (volt-ampere) per channel

Built-in energy monitoring: +/- .5% revenue grade accuracy / 1 sec sample time

Dynamic remote management of loads

Communicates via Bluetooth Low Energy (BLE) technology

Color LCD display for easy identification and load status

Two switches positioned on front of module allow power to outputs A and B to be toggled manually

Environmental

Temperature: 32° to 104° F (0° to 40° C)

Humidity: 5% to 85% Relative Humidity (non-condensing)

Location: Indoor Use Only

Power

Input Power (powers the module): 120V AC (+/- 10%) @ 60 Hz, 0.1A max

Input Power (from feeder breaker): 2120V AC @ max load power

Load Power: 2400VA max per channel (20A resistive load / 1 HP max per channel)

Features of Automatic Action: Type 1.B action

Standards

Wireless: Bluetooth 5 Low Energy (BLE); 2.4 GHz radio frequency

Regulatory

Safety and Emissions: FCC Part 15, UL, ICES 003

Contains FCC ID: PUU-QP2R20120

Contains IC: 10798A-QP2R20120

RoHS: Compliant

Supported Load Types

Standard Configuration: Relay On/Off type loads (home automation)

Electrical Characteristics

Tighten Torque: 3.0 Nm

Wire Type: Copper (Cu) only

Pollution Degree: 2

Purpose of Control: Operating Control, Smart Relay Control Module or equivalent

Software: Class A

Impulse Voltage: 2500V

Construction of Control

Open Type: Independently mounted for flush mounting

Minimum Supported Release

Savant OS: da Vinci 10.1

Specifications

General Specs

Product Weight (lbs.).5
Width (in.)1.45
Height (in.)2.6
Length (in.)4.97
Outdoor ApprovedNo
Manufacturer Warranty5 Year
Color Finish NameBlack
Ul Cul ListedNo
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo
App CapableNo
