Savant® Heavy Duty Surface Mount Black Gate Station-DOR-HDSMKB-00

At a Glance

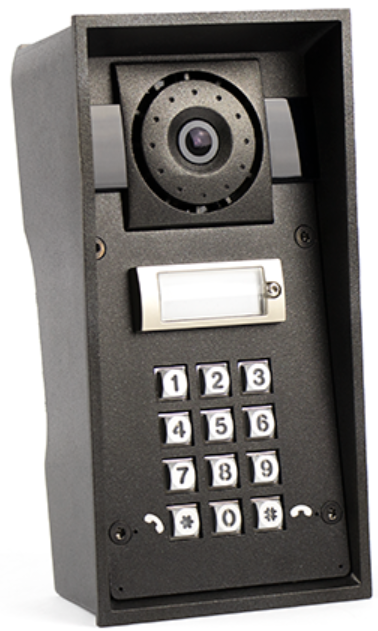

Savant® Heavy Duty Surface Mount Black Gate Station with keypad and wide angle HD camera

Proposition 65 Warning for California Residents

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

The Savant HD Door Station is a IP door intercom that provides reliable access control, communication and video surveillance in a sturdy form factor.

This product is over built throughout to protect against exposed install locations like gates.

Microphone and speaker built in

Wide-angle HD camera with infrared light and night vision

Powered directly from the LAN equipped with PoE 802.3af supporting network elements

For Pre-Construction see DOR-HDFLBRICK or DOR-HDFLPLAST

Power:

POE: PoE 802.3af (Class 0 - 12.95W)

Power Supply: 12V ± 15%/ 2A DC

Connections:

Ethernet: 10/100BASE-TX with Auto-MDIX

Relay: NC/NO contacts, max 30 V/1 A AC/DC

GPIO: 9 to 13 V DC depending on Power supply (PoE: 9 V; adapter: source voltage minus 2 V), max 700mA

Environmental:

Operating Temp: -40°C – 55°C

Operating Humidity: 10%-95%

Certification: IP69K

Camera:

Resolution JPEG:  1280x960

Resolution In Call: 640x480

Viewing Angle: 135° (H), 109° (V),

Night Vision: Yes

Note

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
