Savant® SmartLink HDBaseT™ Extender Set

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

The HCX-SLN501 HDBaseT Extender Set provides a simple solution for extending any HDMI port within a system.  These extenders support resolutions up to 4K60 (at 4:2:0) and High-Bandwidth Digital Content Protection (HDCP) up to version 2.2. Offering integrated control and ethernet ports for local devices, this set digitally transmits audio, video, IR, RS-232, and ethernet over a single Cat 5e/6/7 cable.

• Extends all supported resolutions up to 100 meters
• Supports 4K, HDCP, and 3D TV pass-through
• Dolby® TrueHD™ and DTS-HD Master Audio™ pass-through
• Supports Power over HDBaseT (PoH)
• Front-panel LED indicates connection status
• Utilizes POH to eliminate the need for a second power supply at the endpoint

Transmitter (Tx)

Environmental

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 10% to 90% Relative Humidity (non- condensing)
• Cooling: 25 cubic feet per minute (CFM) recommended
• Maximum BTU: 7 BTU/hr.

Dimensions and Weight

• Height: 0.94 in
• Width: 4.56 in
• Depth: 3.18 in
• Weight:1.35 lb. (Shipping)

Power

• Power Supply: 12V DC 1.5A; 120-230V AC 50/60Hz
• Maximum Power: 6 Watts; 18 Watts (when powering remote receiver)

Compliance

• Safety and Emissions: FCC Part 15 | CE Mark | C-Tick
• RoHS Compliant

Minimum Supported Release

• Savant OS da Vinci 6.0.1

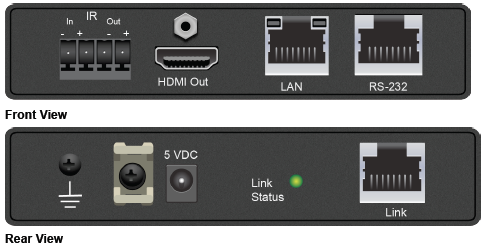

Receiver (Rx)

Environmental

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 10% to 90% Relative Humidity (non-condensing)
• Cooling: 25 cubic feet per minute (CFM) recommended.
• Maximum BTU: 7 BTU/hr.

Dimensions and Weight

• Height: 0.94 in
• Width: 4.56 in
• Depth: 3.18 in (8.07 cm)
• Weight: 1.35 lb. (Shipping)

Power

• PoH: Power over HDBaseT (PoH)
• Power Supply (Optional): 5V DC 2.5A; 120-230V AC 50/60 Hz
• Maximum Power: 10 Watts

Compliance

• Safety and Emissions: FCC Part 15 | CE Mark | C-Tick
• RoHS Compliant

Minimum Supported Release

• Savant OS da Vinci 5.2.2

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
